SlipStream Bike Carrier Rack - Alloy Model (without ramp)

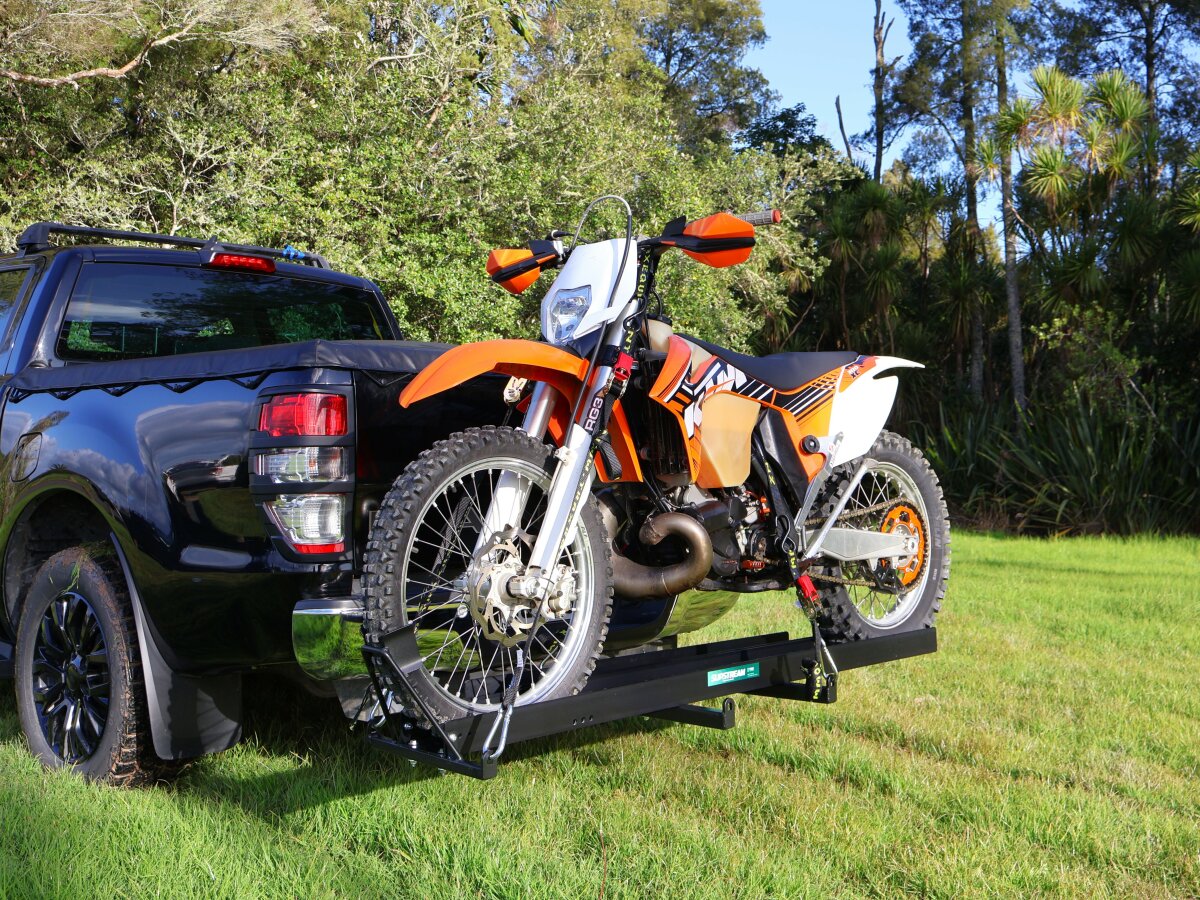

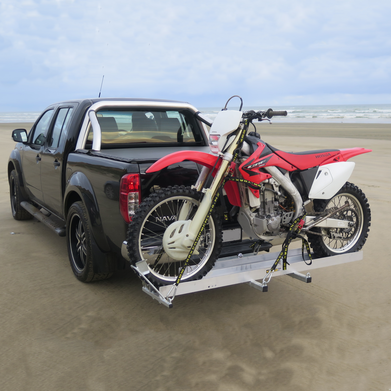

This Slipstream dirt bike carrier is designed to transport off-road, trials, trail, enduro, motocross, pit bikes or farm bikes. Will carry all makes, including Honda, Yamaha, Kawasaki, Suzuki, KTM etc.

• Max tyre width: 140mm
• Rated to carry bikes up to 150kg (or more if they are custom fitted to the vehicle)
• Road legal; No rego or warrant needed
• Drive at the open road speed limit
• Takes very little space to store
• Much easier to park
• Matte black finish
• Takes a few minutes to put on or take off
• Towbar can be used as normal when not carrying the carrier/bike

This alloy carrier is supplied with the channel and standard front bar.

• Can add a ramp for easy loading
• Can add a wheel lock for hands-free tie-down
• Carrier fits all bikes (kids and adults) up to tyre width of 140mm
• Weighs approx. 26kg (depends on configuration)
• Steelwork is powder-coated black and the channel is high-tensile grade T6 aluminium
• Includes 6 tie-down points
• Will carry scooters (including UBCO bikes)

MOUNTING TO THE TOWBAR (mount is supplied with carrier)

Two mounting options: receiver hitch (fits square removable towbar) or standard mount (fits the fixed tongue style towbar).

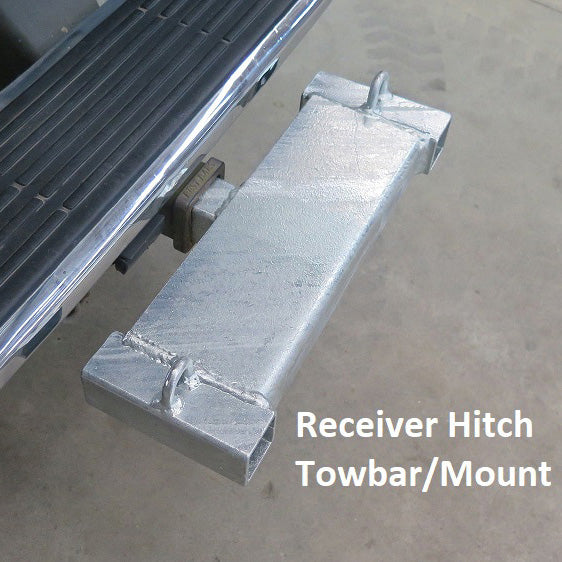

The receiver hitch mount replaces the 50mm removable tow hitch and is fitted into place using the existing tow bar pin.

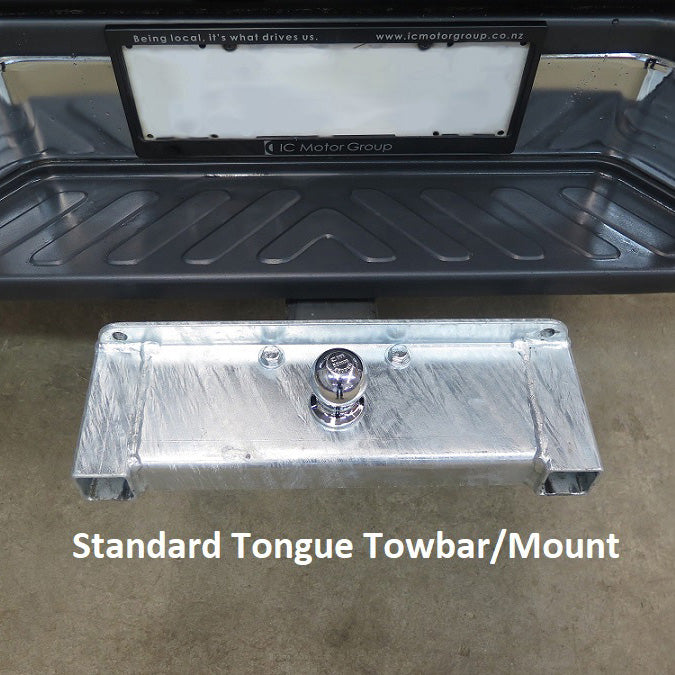

The standard mount is simply bolted on underneath the towball, with a specially designed clamping system to eliminate twisting.

THINGS TO CHECK

Cars' weight ratings vary - check the vehicle's download weight rating

Check towbar type - or send pictures so we can confirm

Slipstream carriers have been designed (in most cases) to clear a spare wheel attached to the rear door

Minimum required between bumper and tow ball centre is 90mm (standard mount)
