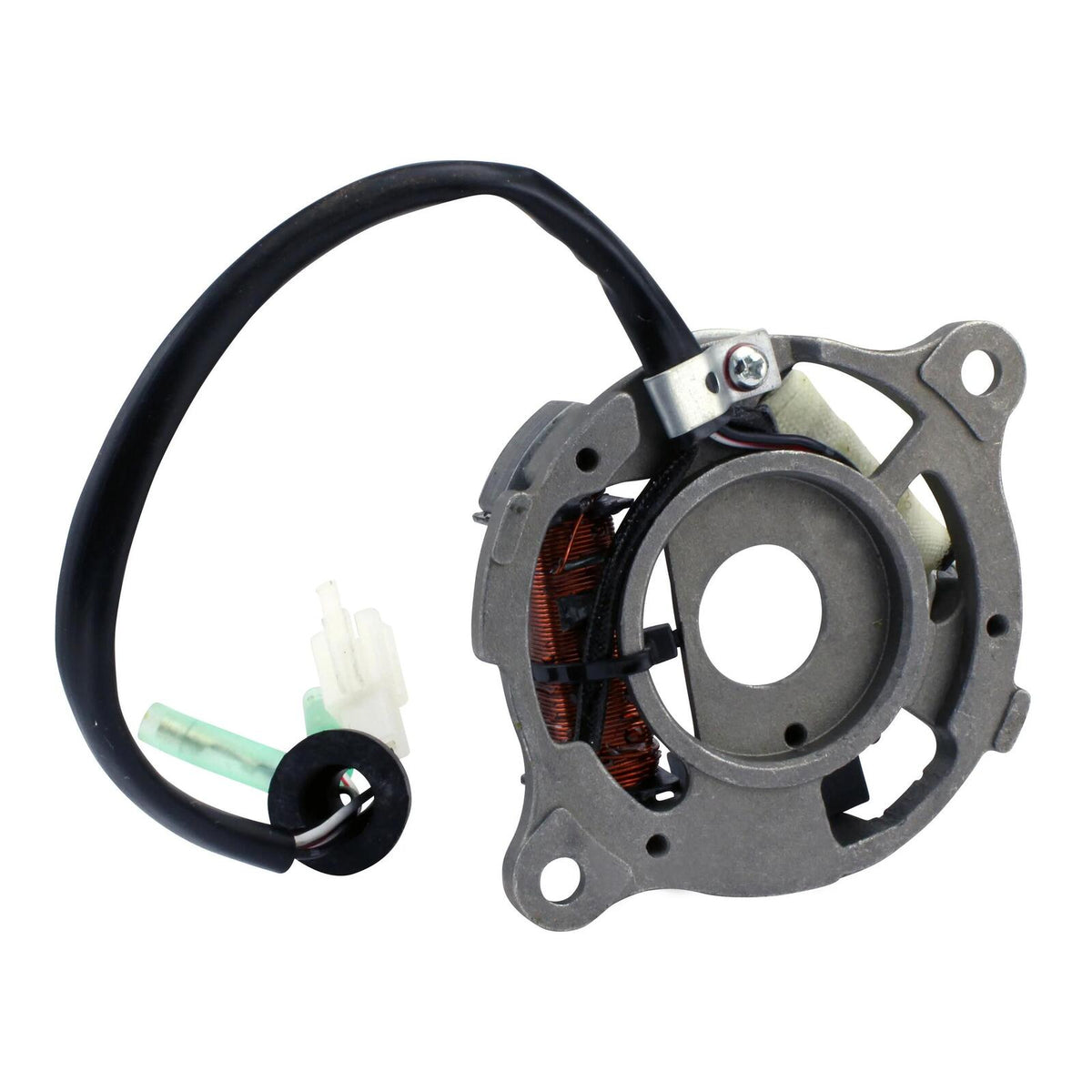

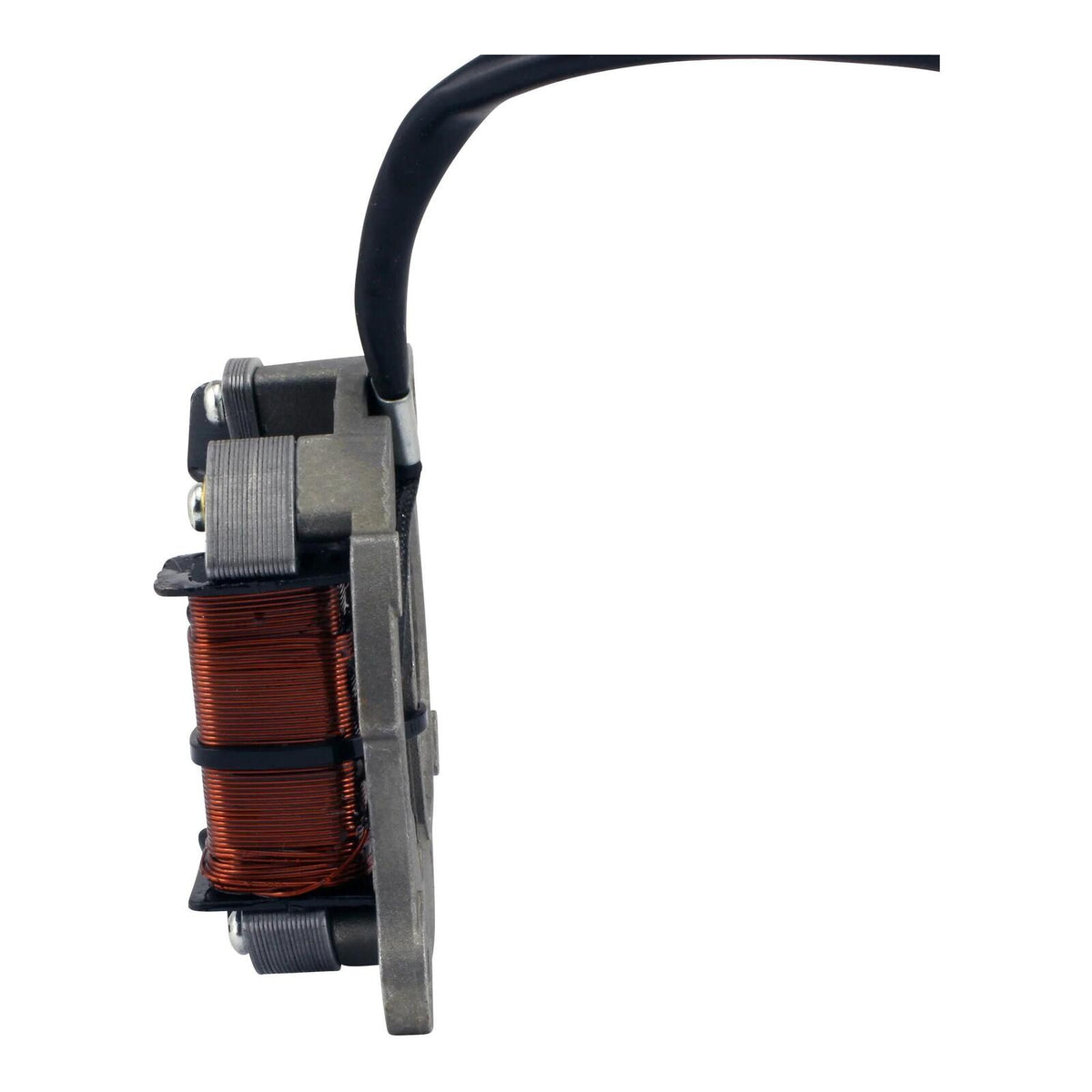

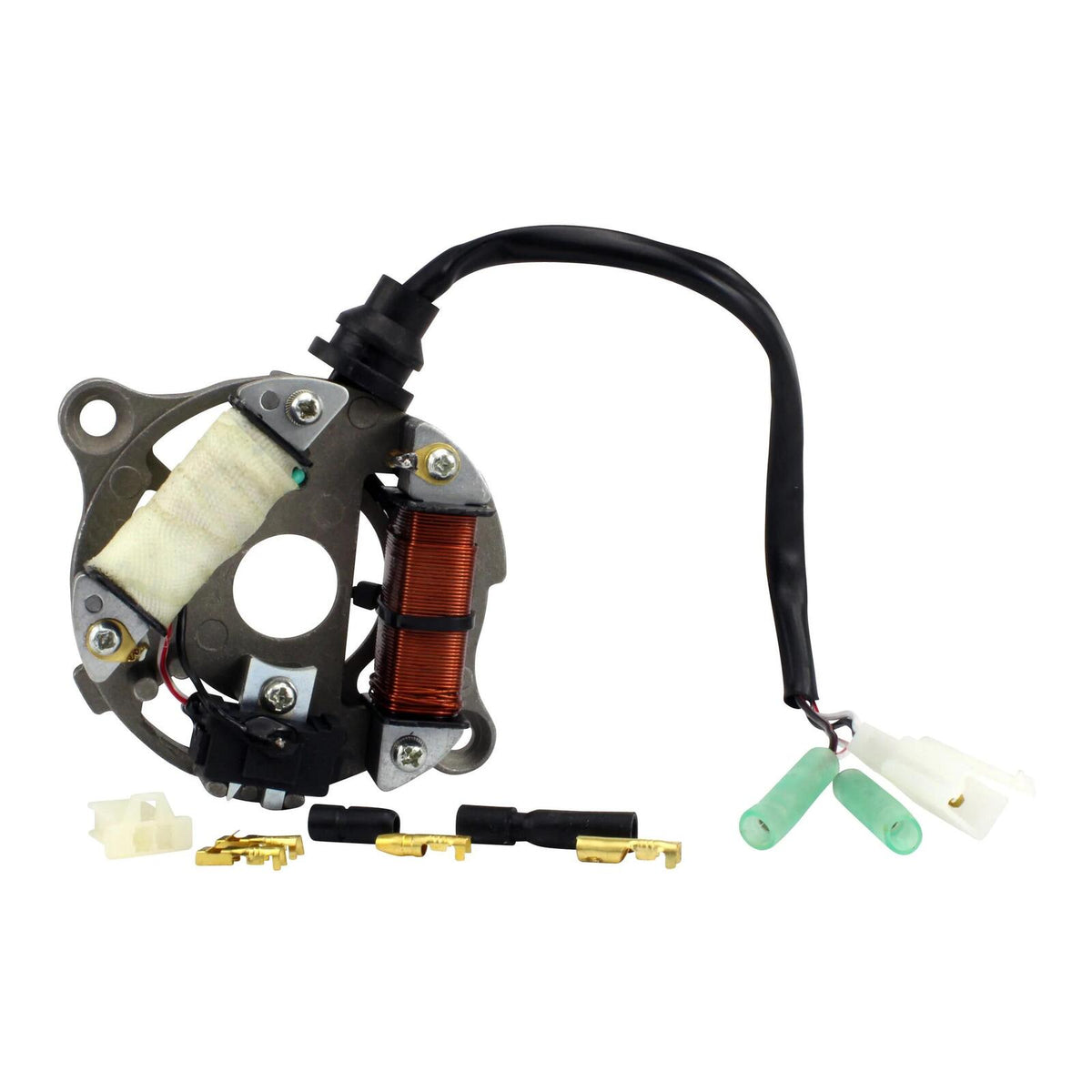

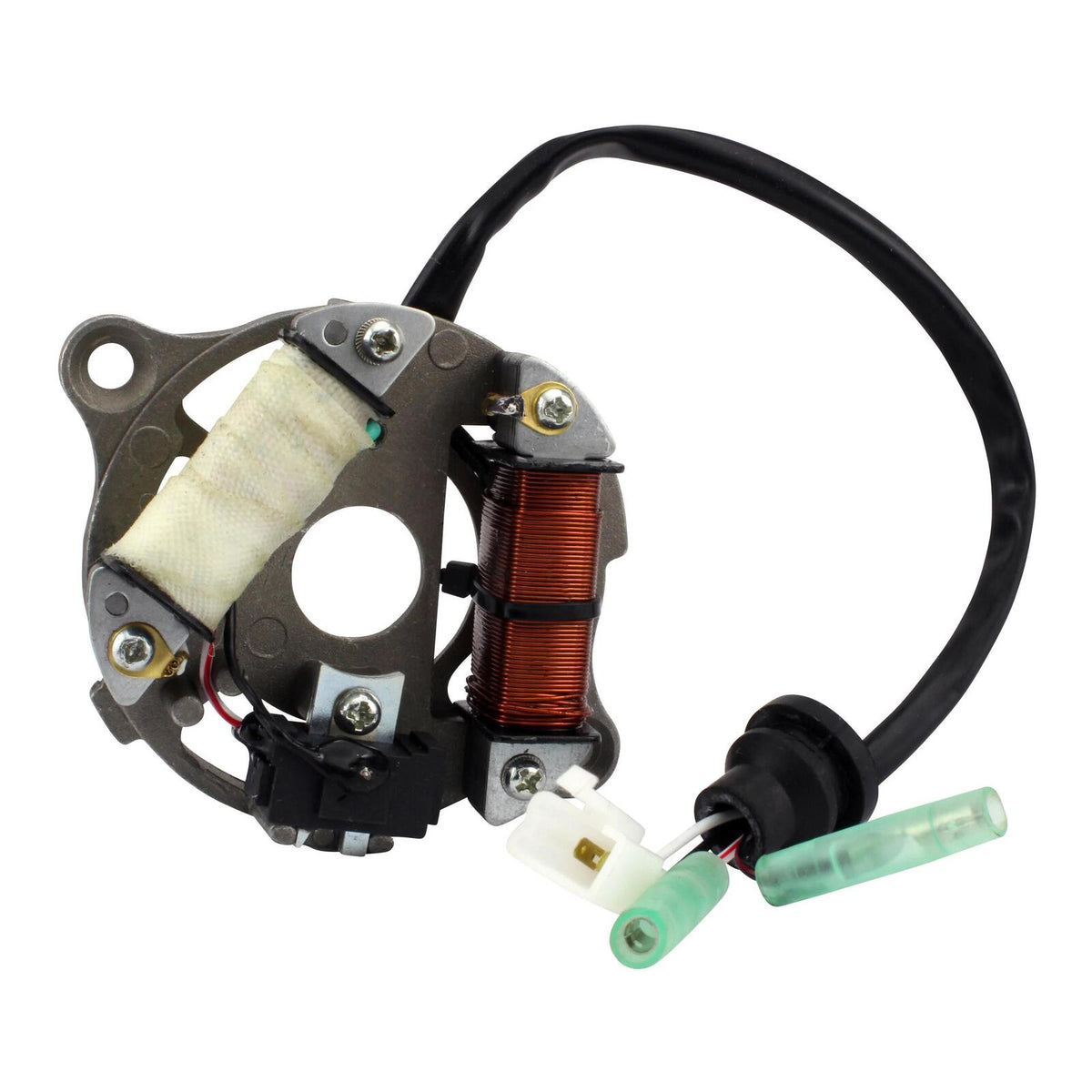

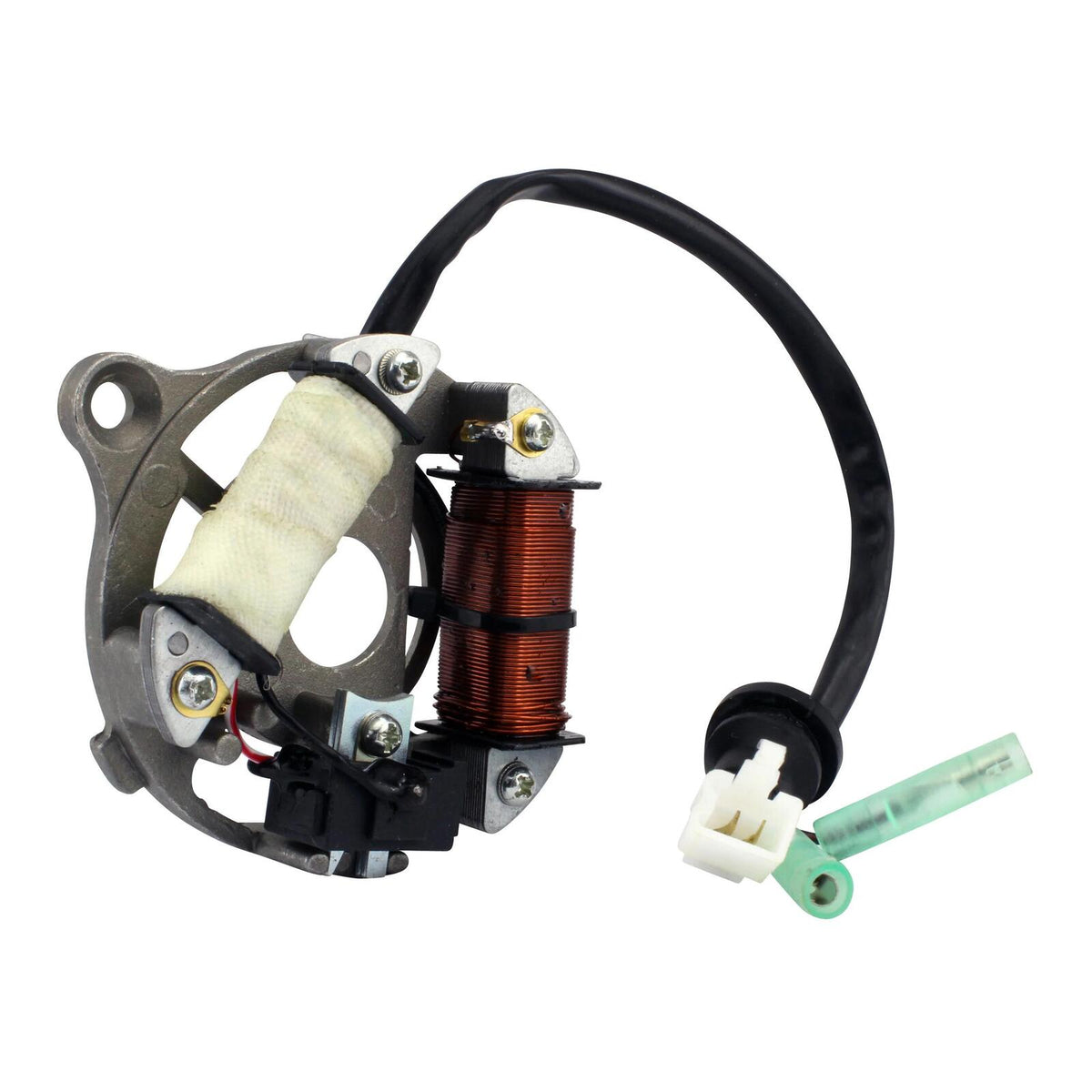

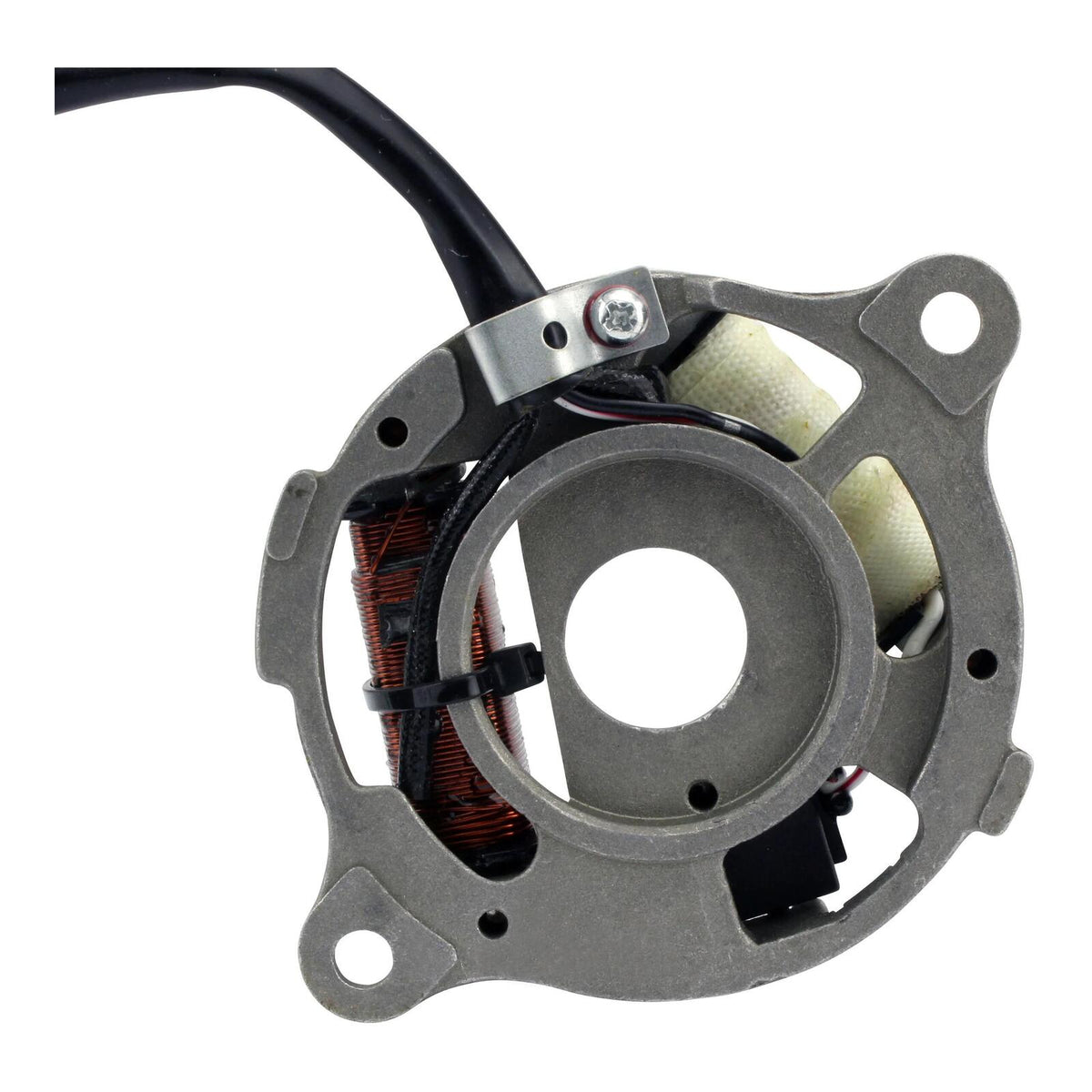

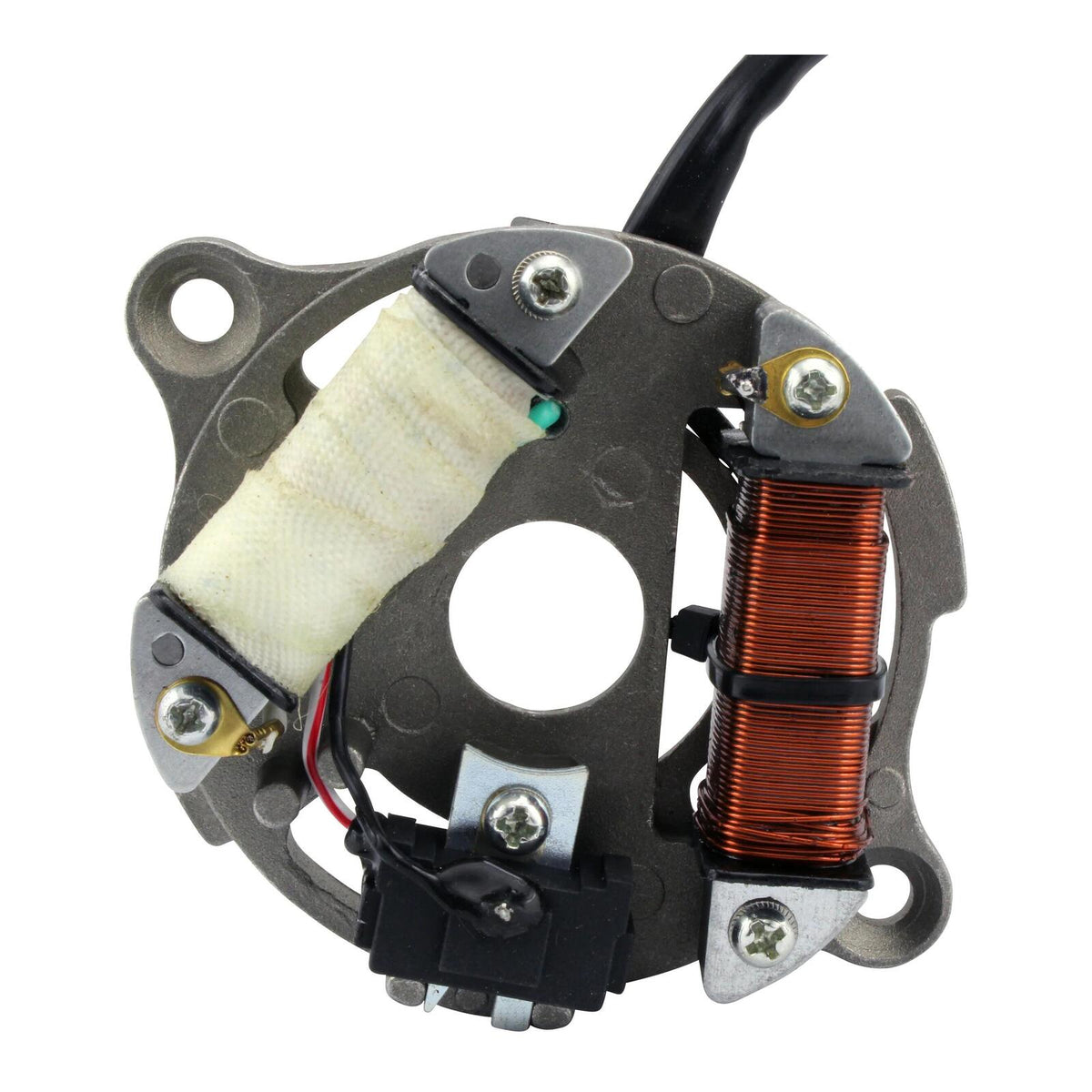

Generator Stator - Yamaha PW50 ('01-'26) (RMS010-108395)

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and comes complete with the pickup pulsar coil, connectors, rubber grommet, and back plate for straightforward installation.

Features:

• Direct replacement for the original stator.
• Plug-and-play design for easy installation.
• Manufactured using high-grade lamination materials.
• Premium copper windings rated to withstand temperatures up to 200°C.
• Pickup pulsar coil included.

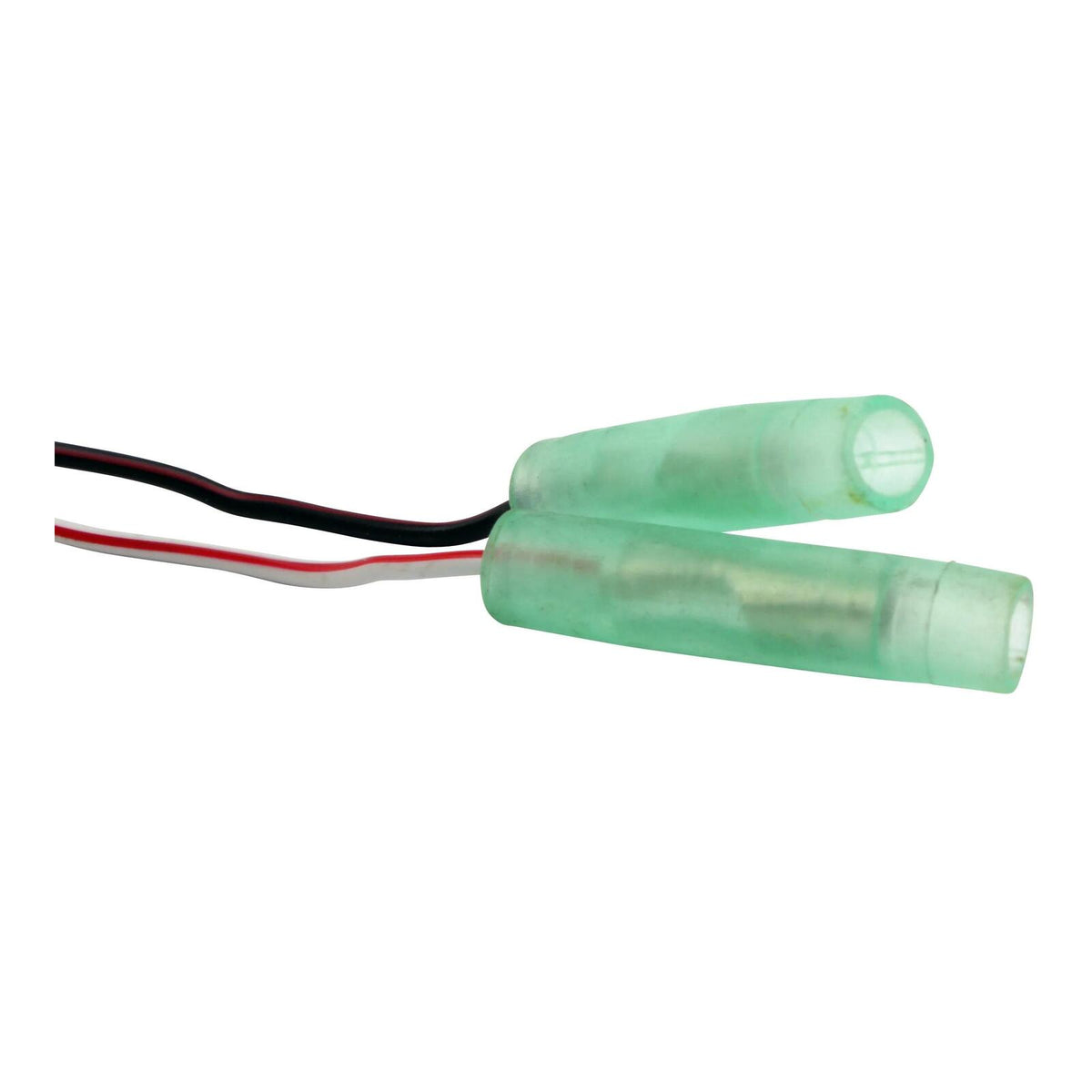

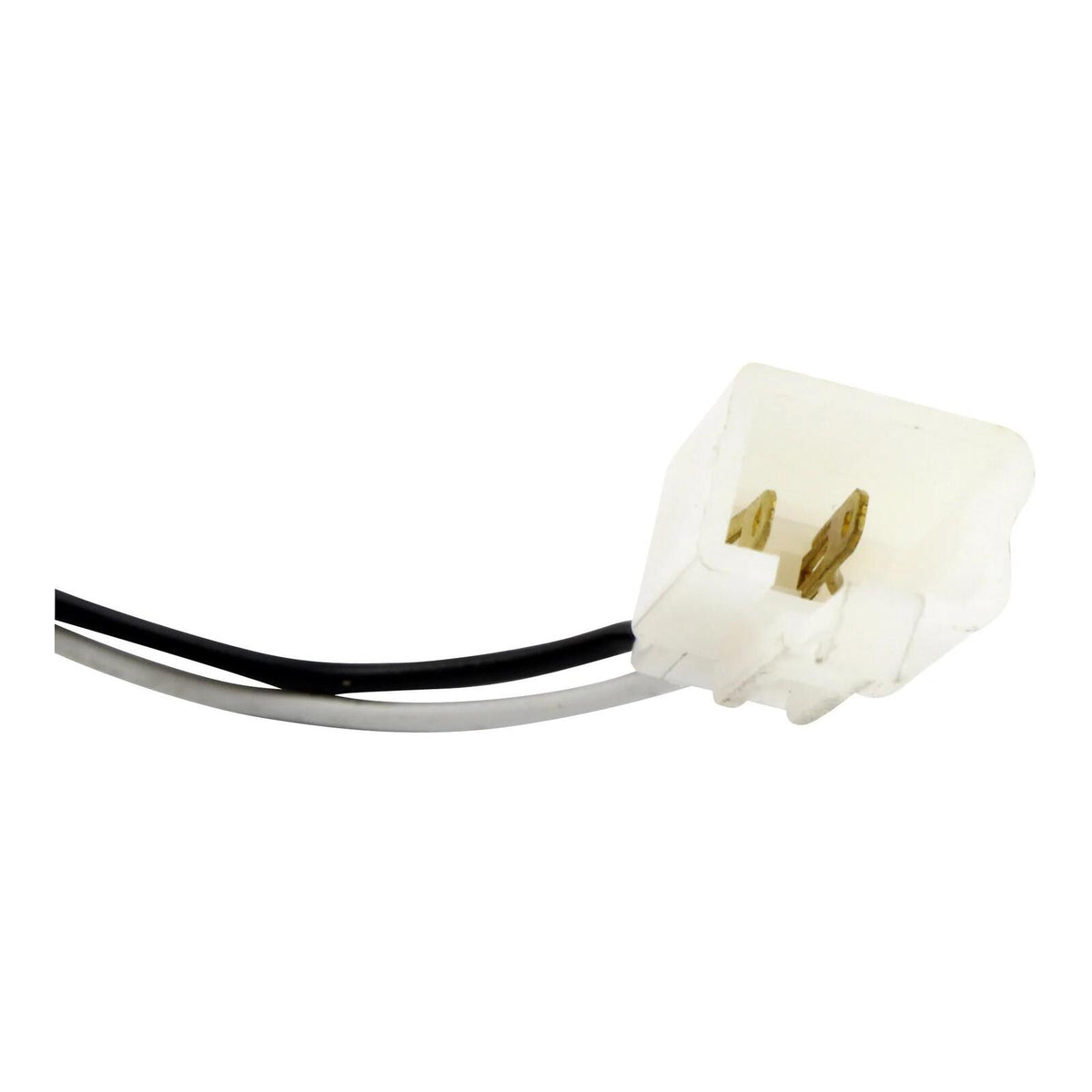

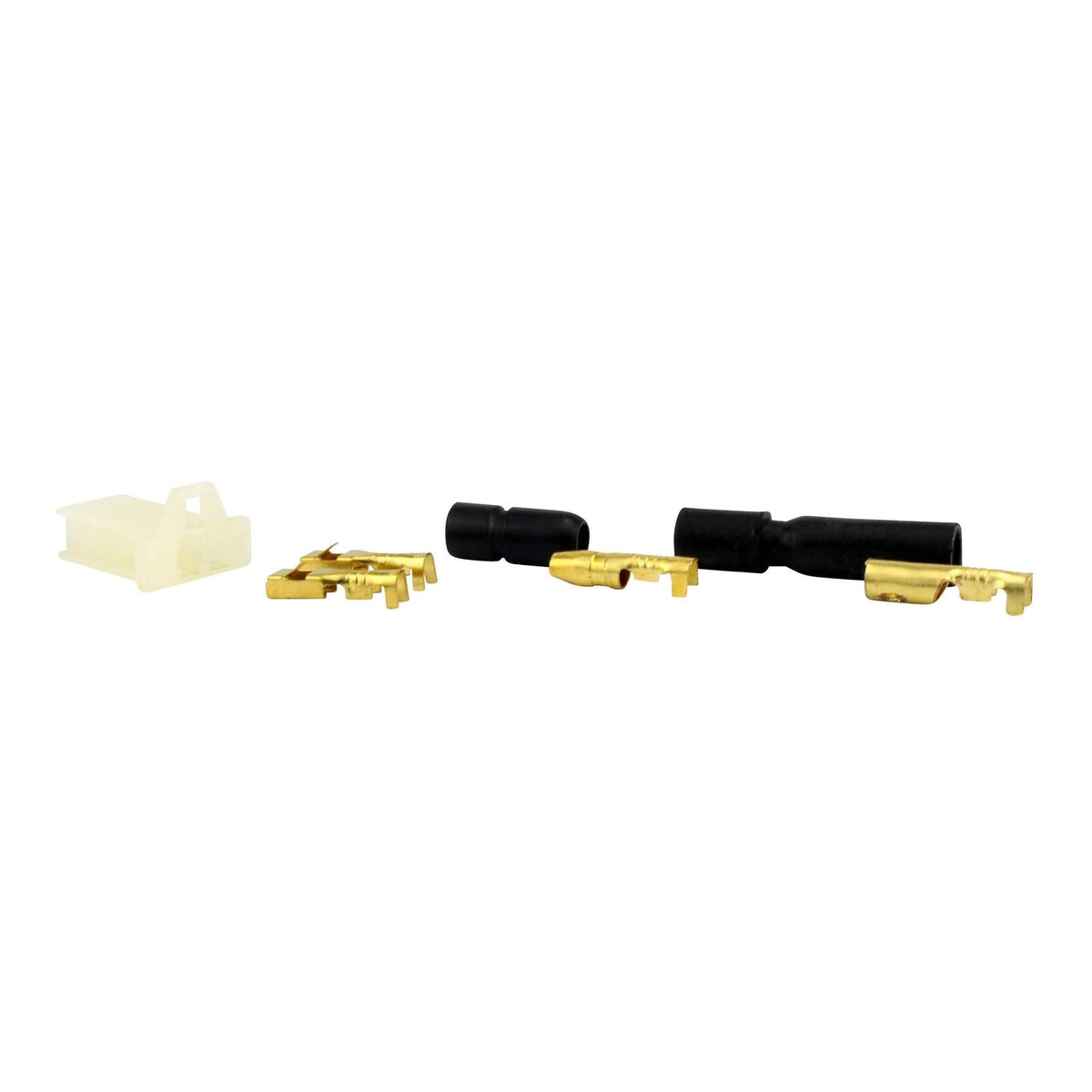

• Connectors included.

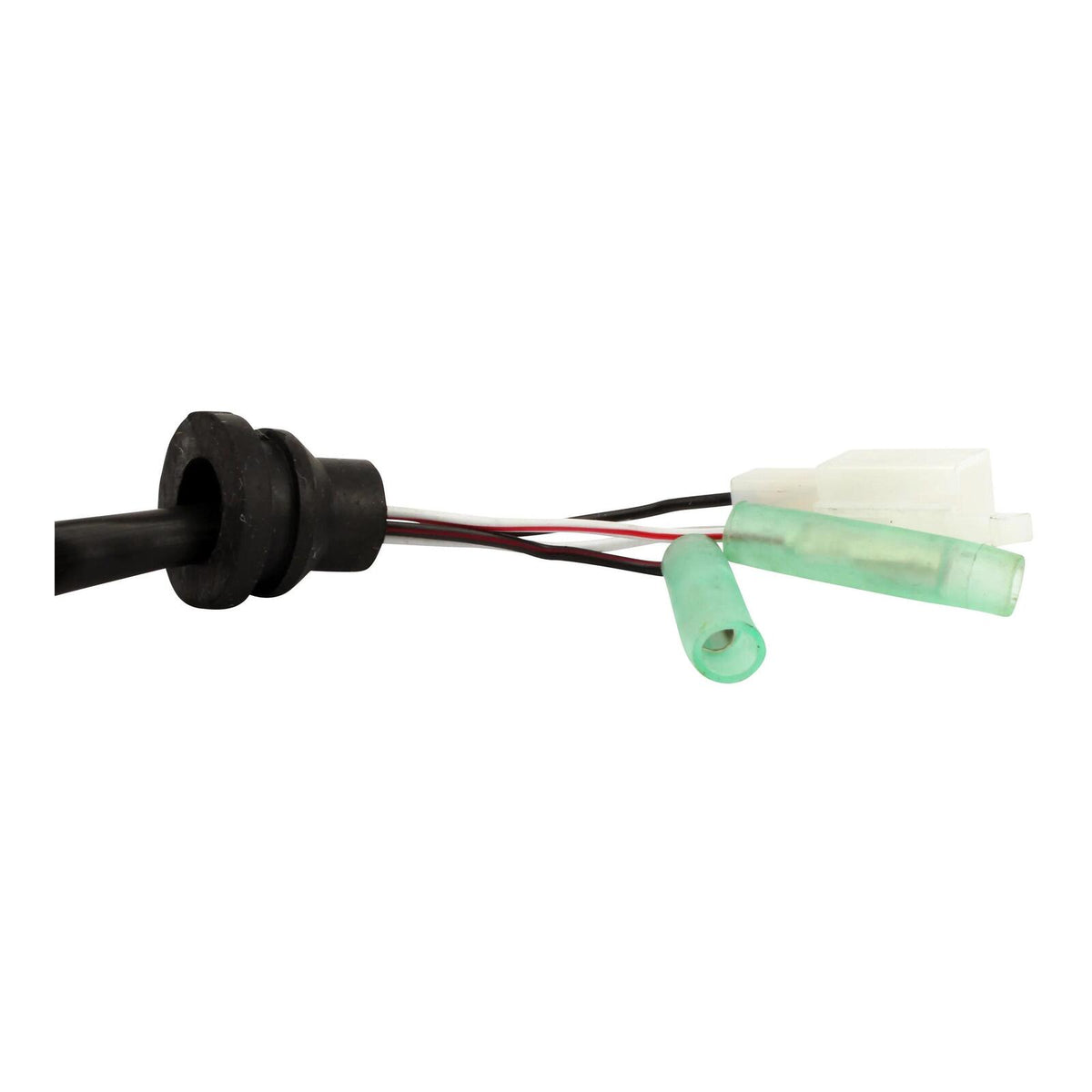

• Rubber grommet included.
• Back plate included.
• Factory tested before shipping.

Dimensions:

• Interior Diameter: 20.4 mm / 40.8 mm
• Exterior Diameter: 89.3 mm / 111.6 mm
• Thickness: 31 mm
• Wire Length (Stator to Grommet): 40 mm
• Wire Length (Grommet to Plug): 160 mm

Specifications:

• Number of Wires: 4
• Number of Plugs: 3
• Number of Pins: 4
• Number of Coils: 3
• Alternator Resistance (White to Ground): 0.5 Ω ±20%
• Pickup Resistance (White/Red to Ground): 20.1 Ω ±20%
• Source Resistance (Black/Red to Ground): 302.6 Ω ±20%
