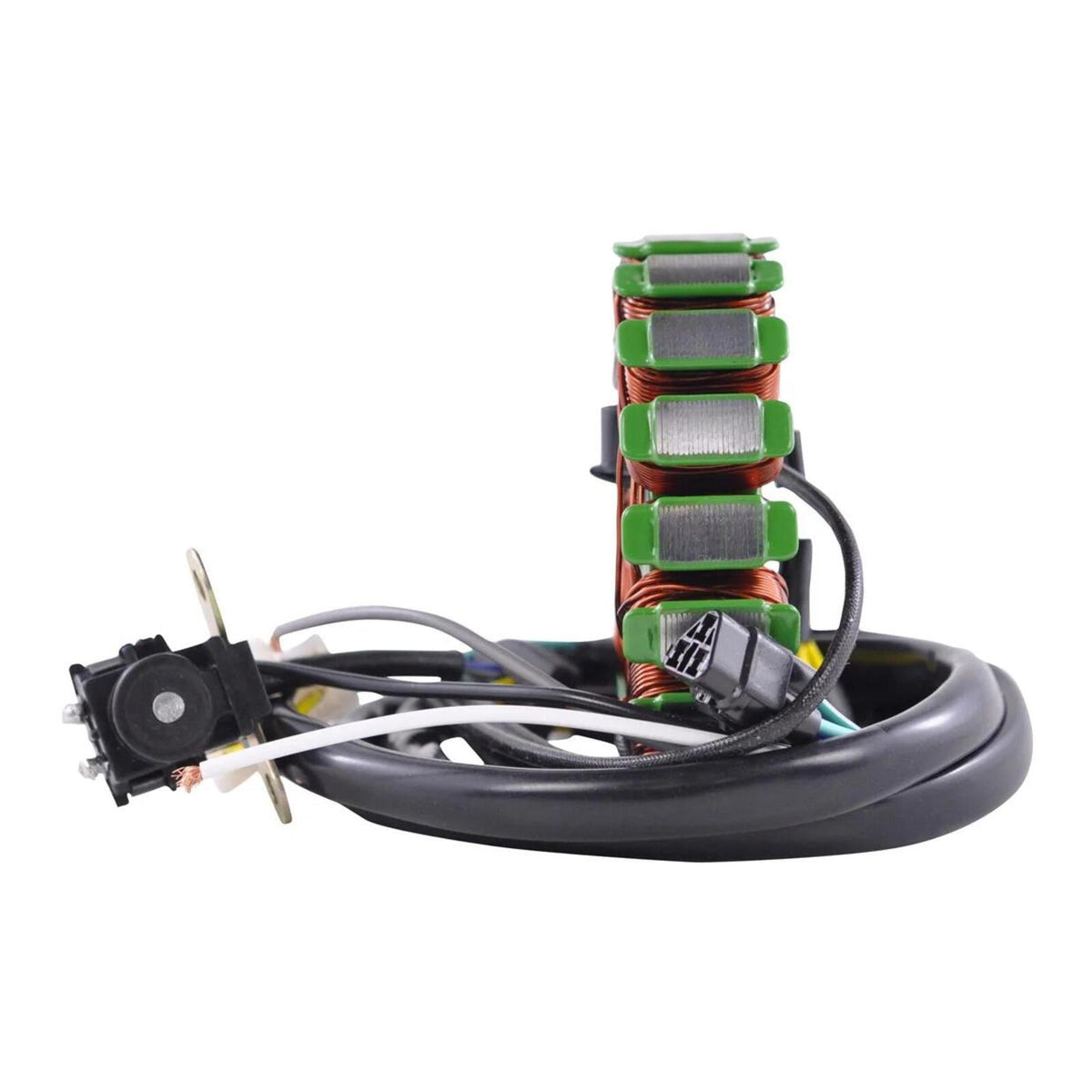

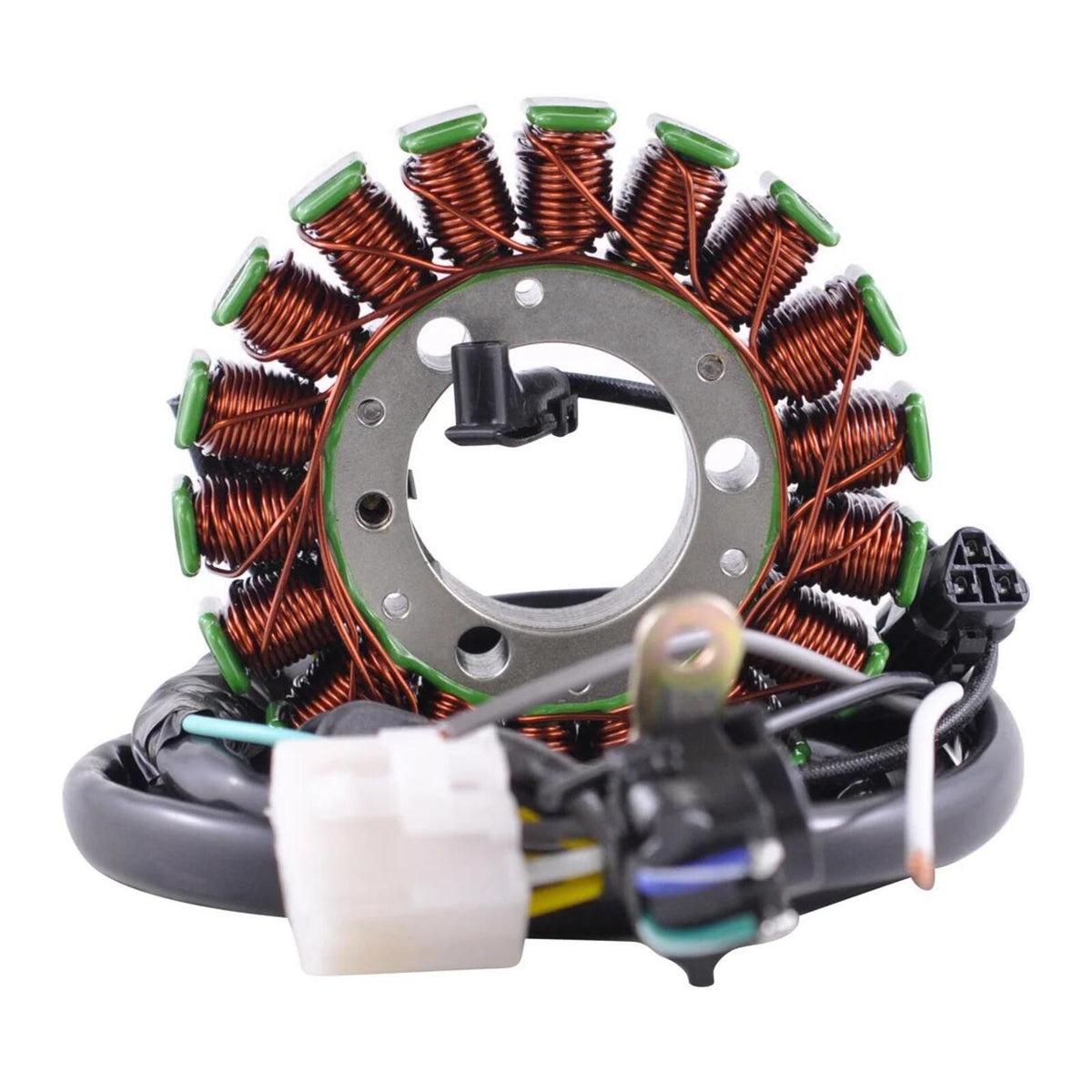

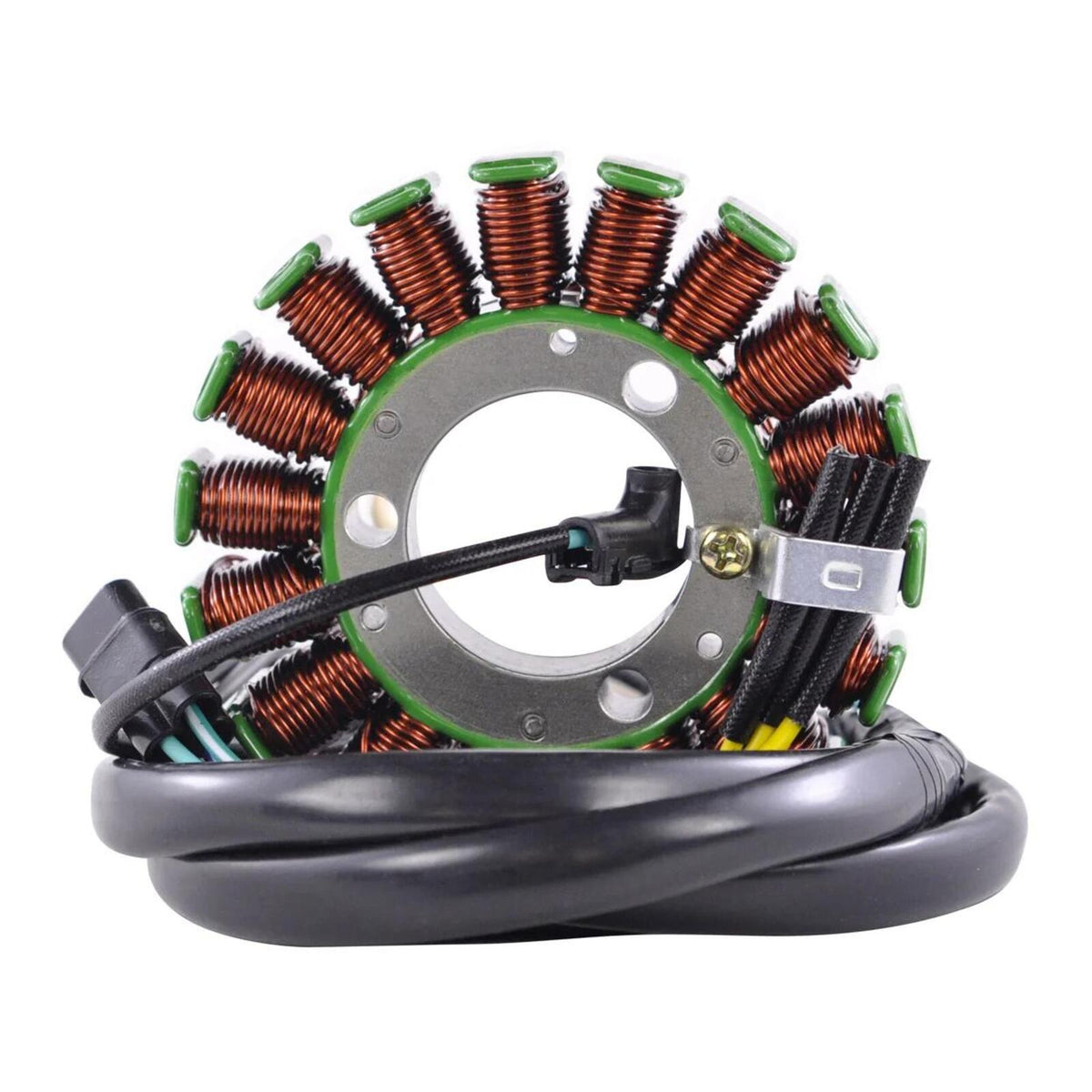

Stator - Kawasaki KLX250 S/SF ('09-'14) (RMS010-101405)

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and includes the pickup pulsar coil, connectors, and rubber grommet for straightforward installation.

Features:

• Direct replacement for the original stator.
• Plug-and-play design for easy installation.
• Manufactured using high-grade lamination materials.
• Premium copper windings rated to withstand temperatures up to 200°C.
• Pickup pulsar coil included.

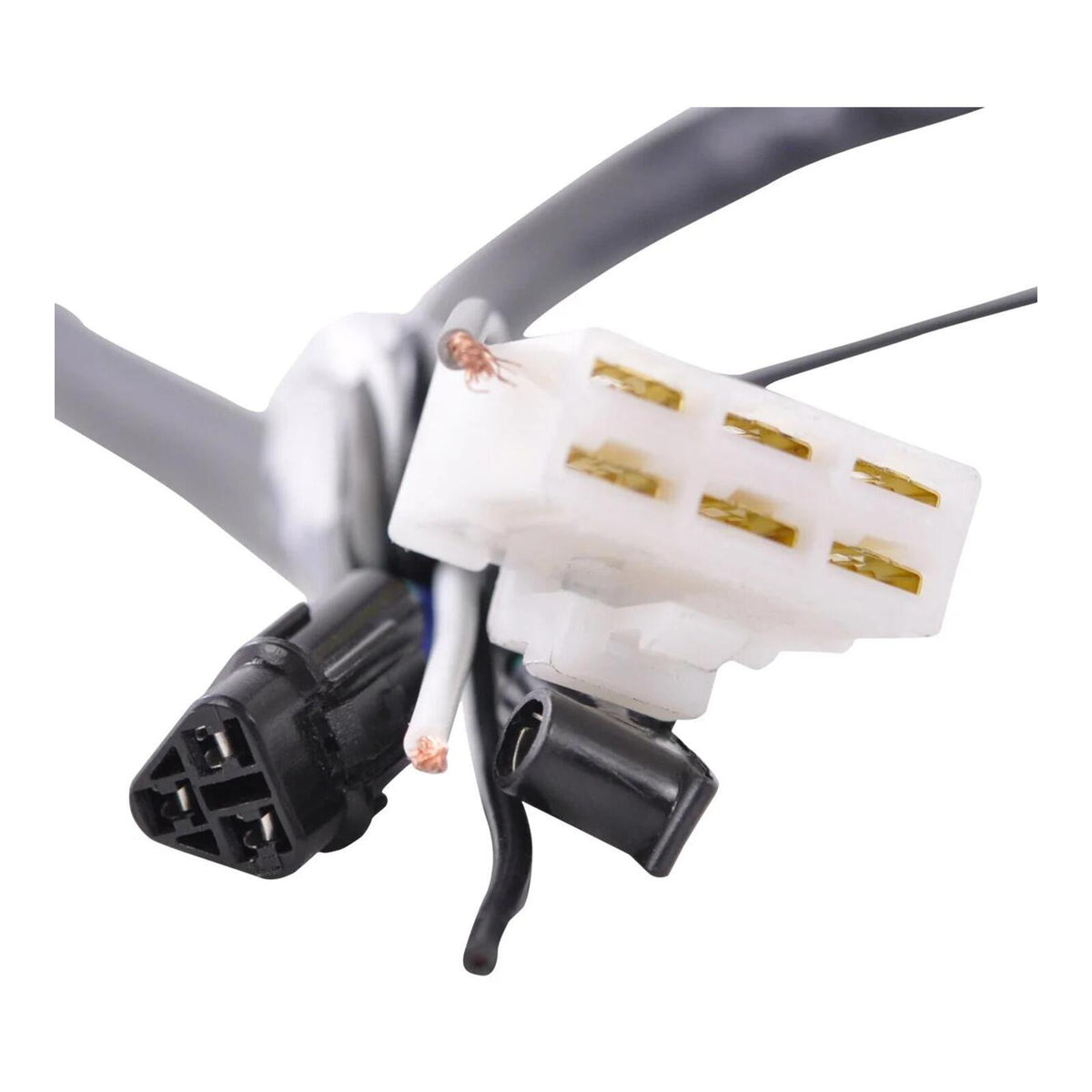

• Connectors included.
• Rubber grommet included.
• Factory tested before shipping.

Dimensions:

• Interior Diameter: 35 mm
• Exterior Diameter: 93 mm
• Thickness: 18 mm
• Wire Length (Stator to Grommet): 155 mm
• Wire Length (Grommet to Plug 1): 505 mm
• Wire Length (Grommet to Plug 2): 810 mm
• Wire Length (Grommet to Pickup Coil Plug): 72 mm
• Wire Length (Pickup Coil to Grommet): 60 mm

Specifications:

• Number of Wires: 13
• Number of Plugs: 4
• Number of Pins: 13
• Alternator Resistance (Yellow to Yellow): 0.9 Ω ±20%
• Pickup Resistance (Blue/White to Green/White): 244 Ω ±20%
